SPECIALLY DEVELOPED FOR INDUSTRY
Industrial work environments often make it necessary for monitors and computers (= industrial monitors) to be highly robust against dust, oil, moisture, steam and significant temperature fluctuations.
The use of high-quality, extremely resistant materials (such as aluminum for the housing) ensures that the electronics installed inside are protected from even the finest particles – and they are waterproof to IP65.
Insensitive and fail-safe: easy to keep hygienic and clean with industrial cleaning agents even during operation – and thanks to flexible assembly systems also without cable clutter.
THE PERFECT SOLUTION FOR EVERY INDUSTRY
PAG industrial monitors can be used to control computer-supported machines, plants or processes, in order to improve productivity and communication. Outage times are minimised and downtimes reduced, while process efficiency significantly increases.
Manufacturing and production
Warehouse and logistics
Laboratory environments
Food and groceries industry
Mechanical engineering, workbenches, heavy industry
Metal-, woodworking and assembly companies
SOPHISTICATED AND RELIABLY ROBUST
PAG industrial monitors are meticulously designed for use in dusty, oil-vapor-laden or highly humid environment and deliver long-term runtime, while effortless and intuitive in everyday use.

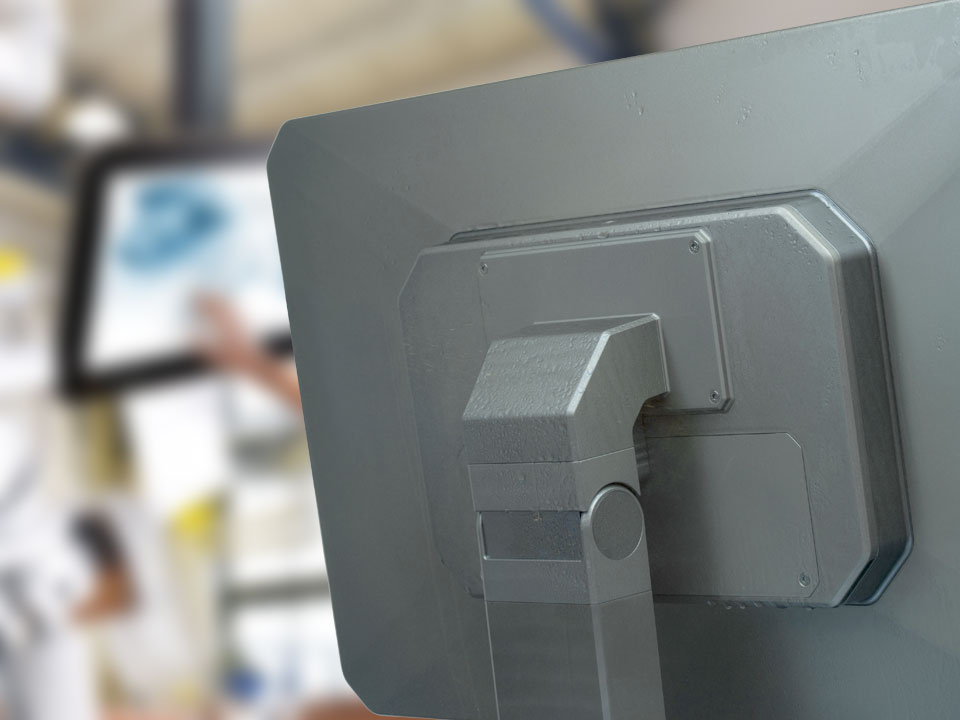

Sturdy aluminium body
Fully sealed, hard anodised aluminium body. Convenient use on smooth, flush-mounted surfaces without any sharp edges, dirt joints or protruding parts. Fanless, passive cooling of all industry components using the housing of the monitors.

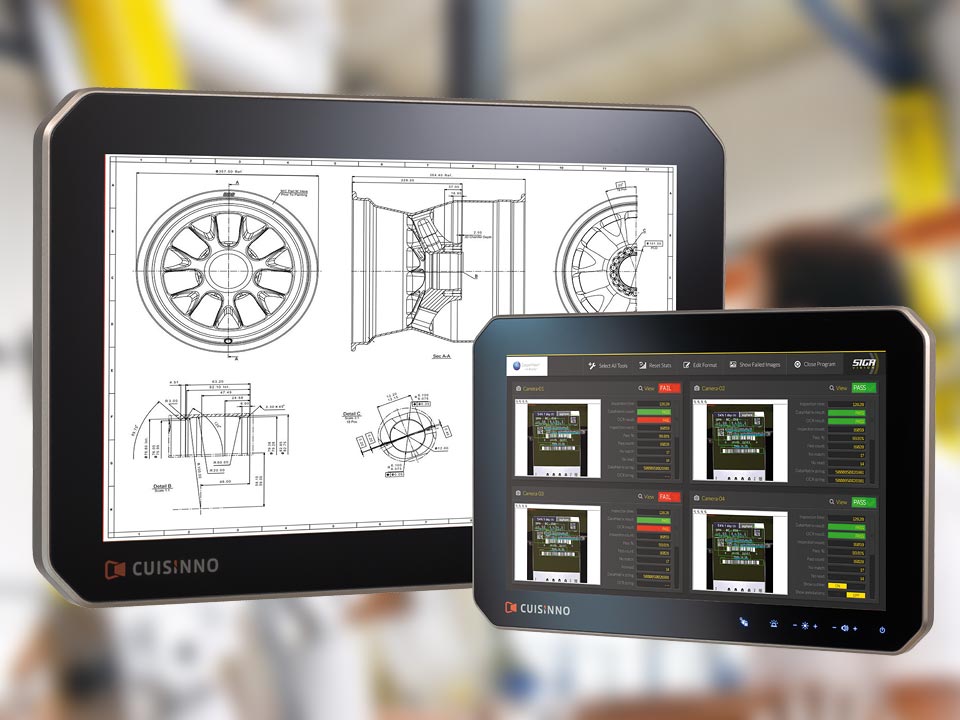

Industrial multi-touch-display
Industrial monitors (21.5″ and 32″) with capacitive touch screen and high resistance to knocks or scratches (3 mm thick front glass).
Built to last, with high breakage resistance and no impairments due to UV rays. Usable with wet hands and medium-light gloves.

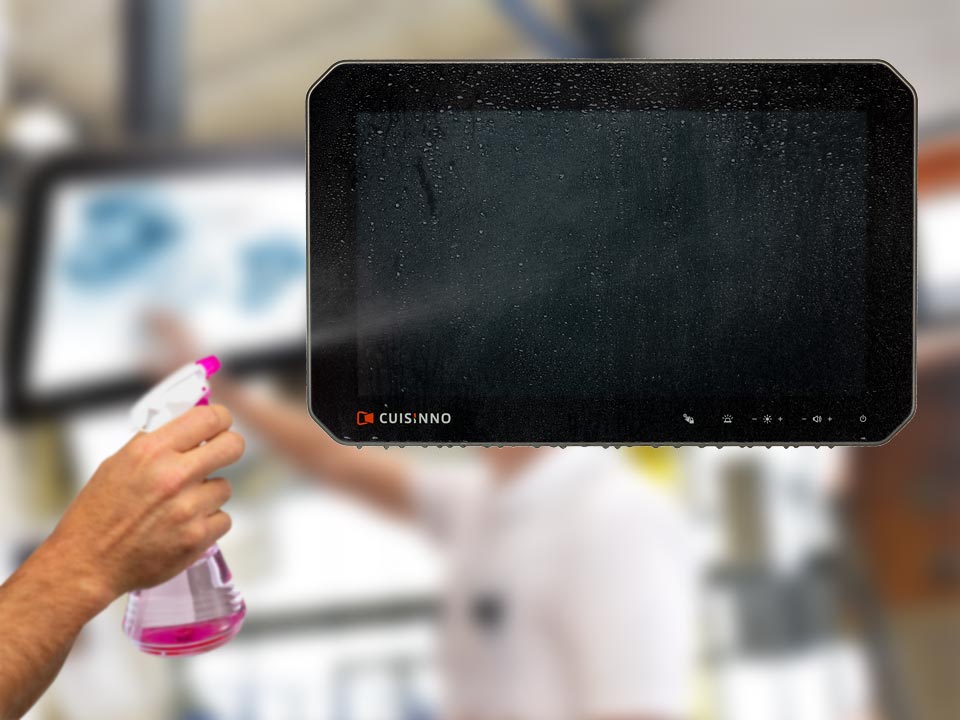

Effortless and hassle-free cleaning
The water-, dust-, steam- and oil-resistant PAG monitors meet the highest standards for hygiene and hassle-free cleaning.
Using the convenient ‘touch lock’ feature, the device can be cleaned quickly and effortlessly, even while in operation.

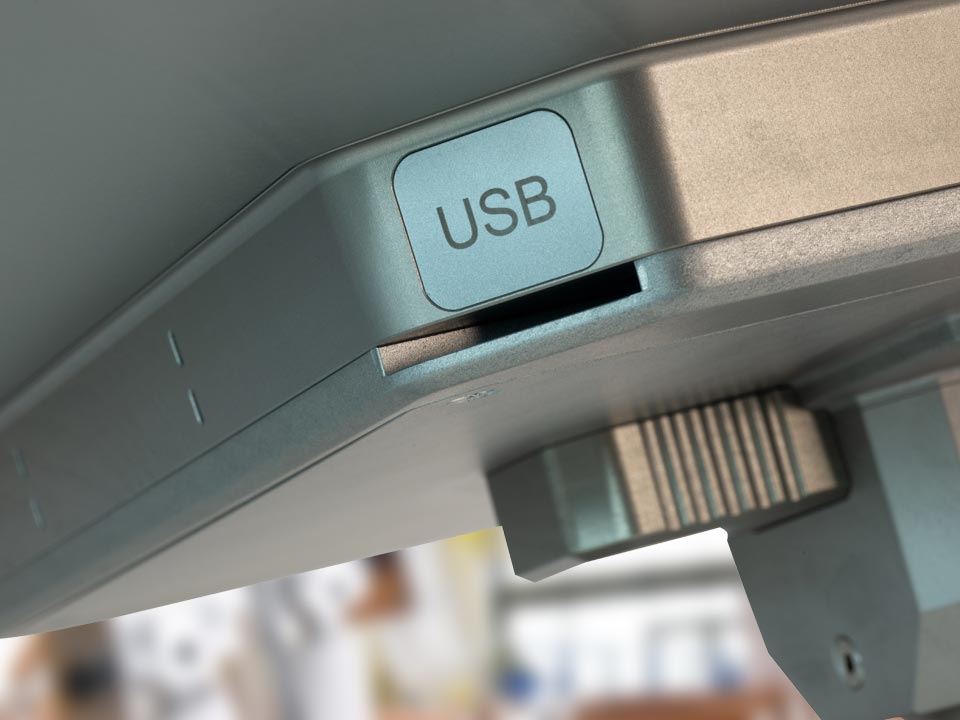

Durable industry components
All electronic modules, like the integrated power supply (110 – 230 VAC), are manufactured using exclusively industry-grade components with distinctively low error rates.
As a result, PAG monitors guarantee continuous, error-free operation in a working temperature range of 0 – 50 °C ambient.
INSIGHTFUL INNOVATIONS

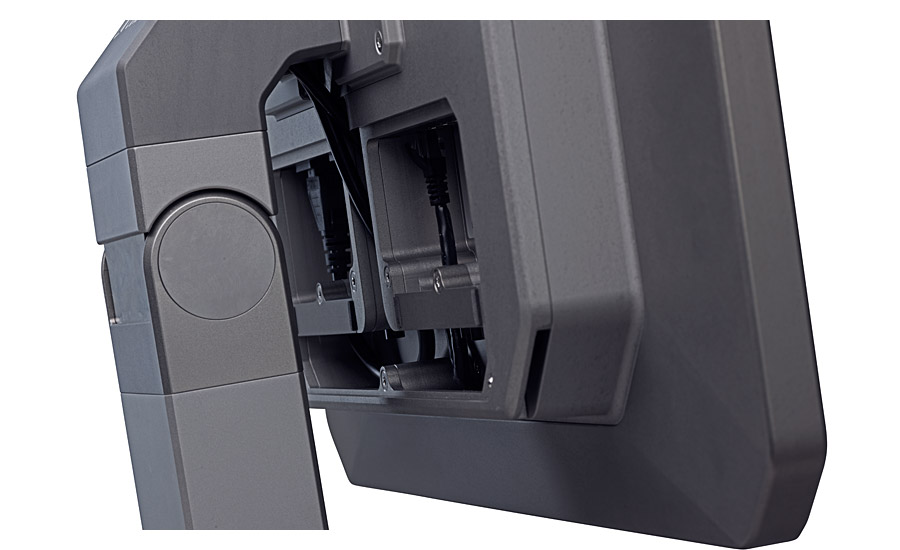

INTERNAL cable routing
Neatly tucked away cables make the monitor easy to clean and avoid unnecessary tripping hazards!

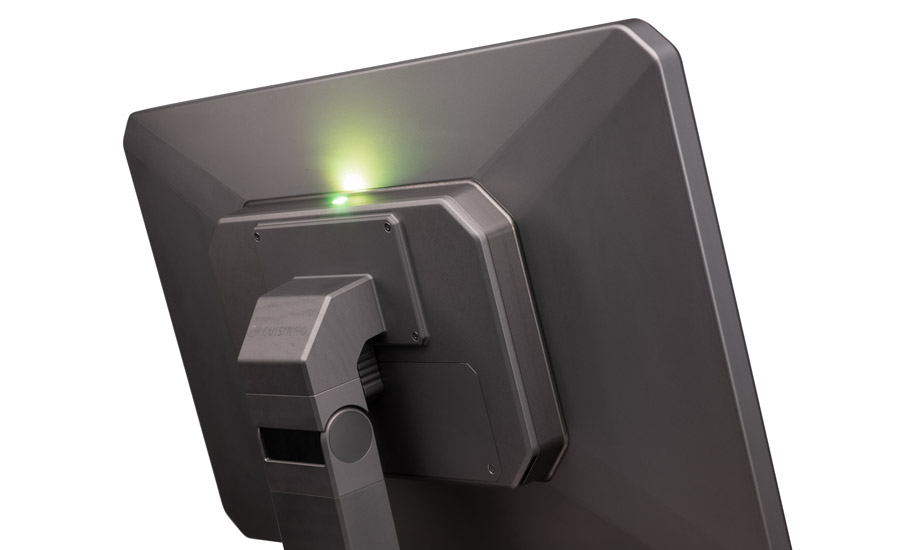

CLEVER notification LED
The bright notification LED on the back of the device can be used to provide visual indication (especially handy in louder work environments).
MOUNTING SOLUTIONS
Sophisticated and safe cable routing is an absolute must in industrial work-environments. The mounting systems for PAG Industrial Monitors allow for effortless cleaning – without any tripping hazards!
Table Stand
SF 215 | SF 320
Wall Mount
TAWH 400 215 | TAWH 400 320
Floor- and Ceiling-Mount
DBH 1200 215 | DBH 1200 320
height adjustable 120 cm – 150 cm
Floor- and Ceiling-Mount
DBH 1600 215 | DBH 1600 320
height adjustable 140 cm – 190 cm
VESA adapter plate
100 x 100 mm
MODELS AND TECHNICAL SPECIFICATIONS
PAG 215
PAG 320
CASING
Robust, hard anodized aluminum housing
Measurements:
21,5“ = 568 x 360 x 70 mm
32,0“ = 796 x 490 x 83 mm
Weight:
21,5“ = 11,65 kg
32,0“ = 19,75 kg
No openings for ventilation
Service-friendly access to all interfaces
DISPLAY
TFT Full HD active matrix (1920 x 1080 pixels)
Brightness:
21,5“ = 250 cd/m²
32,0“ = 400 cd/m²
CONTROLS
Capacitive multi-touch technology
The screen can even be operated with wet hands as well as (up to medium thick) gloves
Capacitive function buttons
Power switch
CPU
Intel® Atom E3845 quad core 1,91 GHz
GRAPHIC CONTROLLER
Intel® HD Graphics
MEMORY
2 x 4 GB DDR3L-SODIMM-1600
HARD DRIVE
32 GB mSATA
INTERFACES
2 x USB 2.0
2 x USB 2.0 below the casing (easily accessible for servicing)
DP (DisplayPort)
Integrated switch: 4 Port Gbit
OPERATING SYSTEM
Windows (Embedded POSReady 7; Windows 10 IoT)
SPECIAL FEATURES
Automatic temperature monitoring
Flashing LED signalling receipt of new ticket
“Screen Off” when the lights are out in the kitchen
“Touch lock” when cleaning the device
2 stereo speakers with 3-Watt output each
POWER SUPPLY
Power supply: 110 – 230 VAC
Cold appliance socket: 110 – 230 VAC
CERTIFICATIONS
Safety requirement IEC 62368-1: 2014
Protection class IP55 according to IEC 60529
Interference emission according to EN61000-6-3:2007
Interference stability according to EN61000-6-1:2007
Tested by external laboratories.
